Product Description

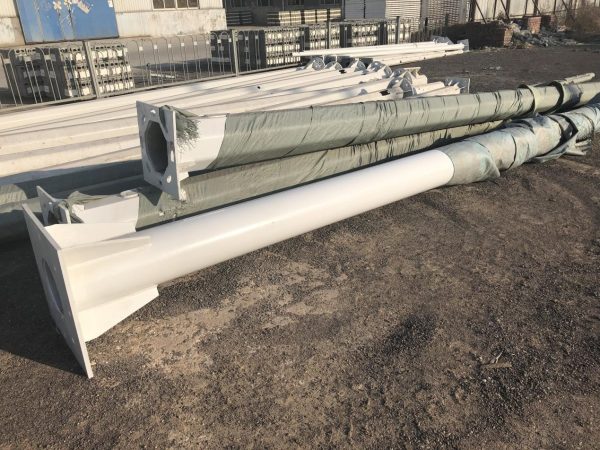

Our Hot-Dip Galvanized Steel Traffic Signal Pole, Street Light Pole and Road Sign Post is a multifunctional support solution engineered for outdoor infrastructure projects. Manufactured from premium Q235B / Q355 steel, these poles are designed to deliver exceptional durability and reliability for highway, parking lot, and urban roadway applications.
Key Features & Advantages
-
Superior Material & Protection: Made from high-strength steel (Q235B/ASTM A36 or Q355B/GR50 as requested) and treated with a hot-dip galvanized finish (ASTM A123 / GB/T 13912-2002 standard), ensuring over 25 years of corrosion resistance in harsh outdoor environments.
-
Versatile Applications: Suitable for supporting street lights, traffic signals, road signs, and surveillance equipment; unifies your project sourcing needs.
-
Customizable Specifications: Available in round, conical, or octagonal shapes; height ranges from 4m to 12m (custom heights up to 30m available for high-mast applications); wall thickness and flange size can be tailored to meet specific wind load and project requirements.
-
Precision Manufacturing: Adopts submerged arc automatic welding (AWS D1.1 standard) to ensure a flawless, seamless appearance; internal and external welding enhances structural integrity and aesthetic quality.
-
Easy Installation: Equipped with a heavy-duty steel base plate and pre-drilled anchor bolt holes for quick and secure concrete foundation mounting.
Detailed Specifications (Reference Parameters)
| Parameter | Details |
|---|---|
| Material | Q235B, Q355B, ASTM A36, GR50, or as per client’s request |
| Surface Treatment | Hot-dip Galvanized (ASTM A123) / Powder Coating (PVDF optional) |
| Shape | Conical (Tapered), Round, Polygonal (Octagonal) |
| Height Range | 4m / 6m / 8m / 9m / 10m / 12m (Customized up to 30m) |
| Upper/Lower Diameter | Customized based on height and load requirements (e.g., φ60mm/φ165mm for 8m poles) |
| Wall Thickness | 2.75mm – 5.0mm (Adjustable based on engineering needs) |
| Welding Standard | AWS D1.1 / CO2 Shielded Arc Welding |
| Lifespan | 25+ Years (under normal installation environment) |
Customization & OEM Service
We support OEM and ODM orders. Whether you require specific arm lengths, unique color coatings, or special mounting plates, our engineering team can provide tailored solutions. Please contact us with your project drawings or requirements for a personalized quote.
